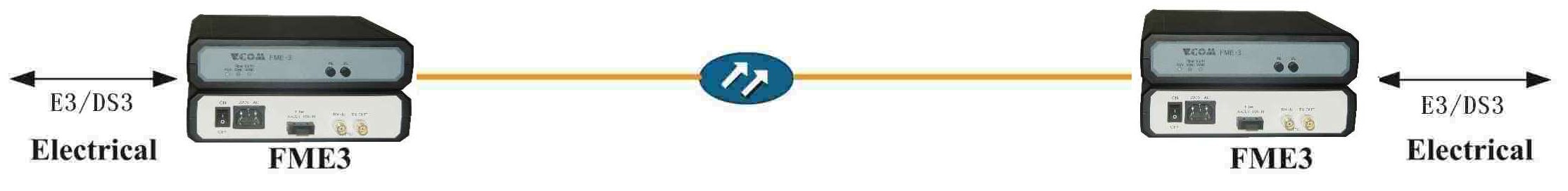

FME3 is a converter for E3/DS3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect.

FME3 is an interface converter for E3/DS3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect.Complete loopback facility is supported for system diagnostic and commissioning. Compact casing and simple operation achieve the cost saving and investment protected.

*High reliability,comply with  ITU-T G.703
*Single Fiber Bi-Directional is selectable
*State-of-the-art design,ensure normal working under different environment
*Supports local and remote loopback on electrical or optical interface for system diagnostic
*Suitable for PDH E3/DS3  interface interconnection
*Simple operation and maintenance
*Compact design and low power consumption

Electrical Interface
Standard :ITU-T G.703 Compliant
Data Rate:34.368 Mbps/44.736Mbps
Line Code :HDB3/B3ZS
Physical Connector :BNC Coaxial

Optical Interface
Bit rate :34.368Mbps/44.736Mbps
Coding:NRZ
Connector:SC
Light source:Laser Diode
Wave length:1310nm (Typical), or 1550nm (Optional)
or Single Fiber Bi-Directional (Optional)
Transmit power:-12dBm (1310nm ) / -5dBm (1550nm )
Receive sensitive:-36dBm (1310nm ) / -38dBm (1550nm )

Power supply
AC 220V±10%,50Hz
DC–48V (Optional)
Consumption:≤5W

Environment
Temperature:0 ℃ ～ 50 ℃
Humidity:≤ 9 0 % (Non condensing )
Dimension
W×H×D(mm): 245 x 215 x50
