MUX8E1-T is 8xE1 to Ethernet Converter. The vaild brandwidth of each E1 is 1984Kbps,the highest rate is 15.872Mbps(8 Lines E1). E1 port can support BNC/75ohm and RJ45/120ohm optional.

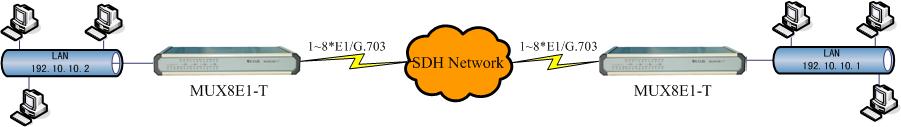

With low cost,it is fit for bridge connection or LAN stretcher or subsection. MUX8E1-T can learn automatically MAC address in the connected LAN  continuously,and transmit the target address of data  frame in another LAN.Its 10/100BaseT interface can run in full duplex Ethernet with topology.Every valid bandwidth is 1984Kbps,the highest rate is 15.872Mbps(8 Lines E1).There can be one E1 line (1984Kbps);two E1 lines (3968Kbps);three E1 lines (5952Kbps);four E1 lines (7936Kbps); five E1 lines (9920Kbps);six E1 lines (11904Kbps);seven E1 lines (13888Kbps). Transmitting speed rate of E1 line is 2048kbps (transparent channels E1, unframed).The transmission lines of MUX8E1-T must be transparent and unframed, which is specially fit for satellites and other wireless broadcast.

*Comply with  ITU G.703,G.704,G.706,G.823
*Support  transparent E1 channel
*Full comply  with IEEE 802.3/IEEE 802.3u and IEEE 802.1Q(VLAN)
*Ethernet port 10/100Mbps,Full/Half Duplex mode compatible
*For E1 interface,75ohm(unbalanced) and 120ohm(balanced) optional
*Allowing 16ms for  transmission time delay of 8E1
*Every E1 take 64Kbps channel depletion, valid bandwidth of every E1 is 1984Kbps
*Support bit error-rate testing of every E1 branch. When bit error-rate of some branch is over the limit, the system will automatically turn off and separate the E1 branch
*Auto-detect the valid E1 channels and auto-balanced the bandwidth of the valid E1 channels
*Comprehensive LED indicators on front panel,convenient for the diagnosis of equipment working state
*-48V DC & 220V AC power supply optional

E1 interface
Comply with ITU G.703,G.704,G.706,G.823
Rate:2.048Mbps
Code type:HDB3
Impedance:75ohm unbalanced & 120ohm balanced optional
Physical connector:BNC coaxial for unbalanced
                                   RJ45 twisted pair for balanced

Ethernet interface
Comply with IEEE 802.3/IEEE 802.3u and IEEE 802.1Q(VLAN)
Rate:10/100Mbps,Half/Full auto-negotiation
MDI/MDI-X auto-crossover
Physical connector:10/100 Base-T(UTP);RJ45

Power supply
AC power:220V±10%,50Hz
DC power:-48V(optional)
Power:5W

Environment
Temperature:0～40℃
Humidity:0～95% RH
