10/100Mbps Fiber Media Converter

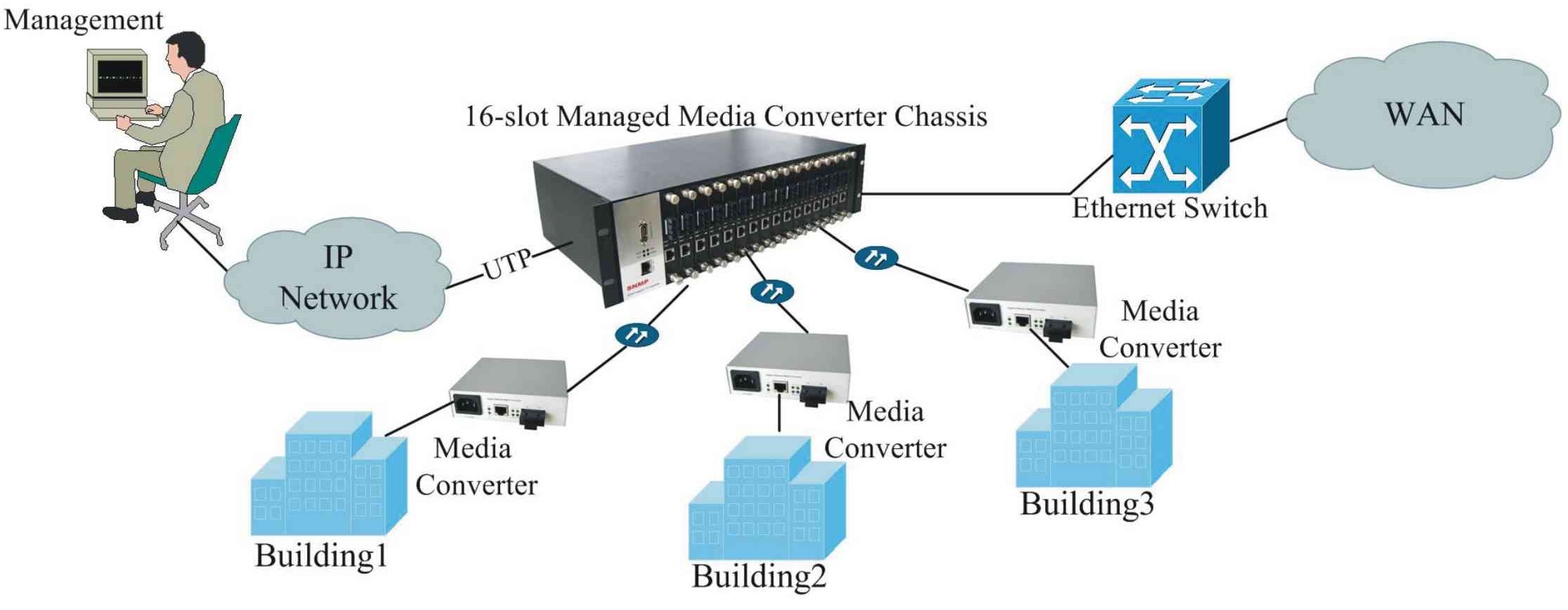

Veecom Series Ethernet Media Converter translates transmission signals from a twisted-pair 10/100Base-TX cable to 100/1000Base-FX fiber optical cable.It has SNMP based intelligent network management,by that user can monitor and configure the copper port and optical port of center chassis and remote standalone easily.Besides,user can control the bandwidth rate limiting as N*32Kbps.The management system enables network managers and network operators quickly isolate problems without visiting multiple wiring closets,avoiding expensive downtime.

*Fully comply with IEEE802.3、IEEE802.3u standards
*Up to 120km distance on single mode optical port
*Up to 1916 bytes package forwarded
*Optical port support Dual-strand,single-strand and CWDM etc
*Ethernet copper port supports 10/100Mbps speed and half/full duplex mode Auto-negotiate
* Ethernet copper port supports MDI/MAI-X auto sensing
*The Number of Ethernet copper ports can extent to 4 ports
*Backup optical ports optional
*IEEE 802.3af PoE(for PD) optional
*Standalones and Chassis Modules Optional, Chassis support cascade link up to 4 numbers for management

*Supports Console,WEB and SNMP management
*View&configure the working status of local chassis and remote standalone device, including  connection stauts,speed,half/full duplex mode,port status
*Set the speed limiation by step of 32Kbps
*Support remote loop back function
*Support online firmware upgraded
