V-IPMUX-SA01/02

V-IPMUX-SA01/02 adopt the innovative TDM over IP technology, with IP circuit emulation that supports transportation of 1~2 E1 /T1 over FE port, that can be used to provide E1 communication channels over Ethernet or IP networks.

  • IPMUX-SA01 provide 1 channel of E1/T1 over 1 Ethernet adaptive
  • IPMUX-SA02 provide 2 channels of E1/T1 over 1 Ethernet adaptive
  • Provide 4 FE electrical ports (2 for uplink, 2 for user data or monitoring) and 1 Ethernet optical port optical port can be used for uplink or user data.
  • Support IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP
  • User-friendly Web server supported for easy setup and maintenance
  • Support SNMP V1/V2 network management
  • E1 clock supports 3 mode: local clock, adaptive and loopback
  • E1 service support lossless protection
  • Ethernet built-in layer 2 switch, support VLAN(802.1Q based and QinQ based), QoS(port based、8021.1P based and TOS based)
  • Ethernet support IEEE 802.3x and MAC address automatic learning
  • Ethernet packet size up to 9720byte

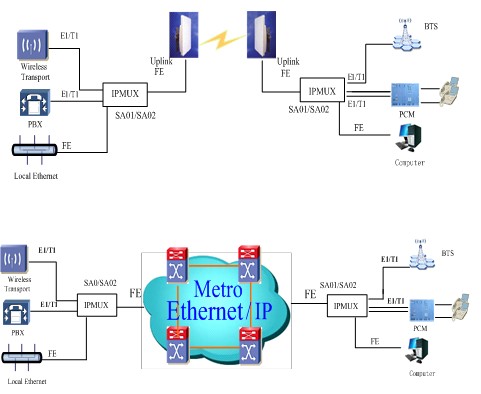

  • Point to point and point to multipoint supported
  • Software and hardware online upgrade
  • Support SNTP network time setting
  • Support software test E1 error



Item

Description

Model

V-IPMUX-SA01/02

2 uplink, 1/2 E1/T1s

Service card

Ethernet interfaces

4 FE electrical ports and 1 FE optical port

Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x

Speed and duplex auto-netiation or manual

E1 interface

V-IPMUX-SA01: 1 E1 ports

V-IPMUX-SA02: 2 E1 ports

Power

Supply

AD or DC

DC  -48V (-32V~-72V)

AC  220V (100V~265V)

Consumption

≤40W

Working Environment

Temperature

0~ 50°C

Relative Humidity

≤90% (non-condensing)

Dimension

W x H x D (mm):

185 x 35 x 136.5 (mm)
