DHODT-LMC is SDH/MSPP Terminal Multiplexer which can take 16xE1 over STM-1. With another expanding solt for other service card, like 4*E1,V.35 and Etherent...ect.

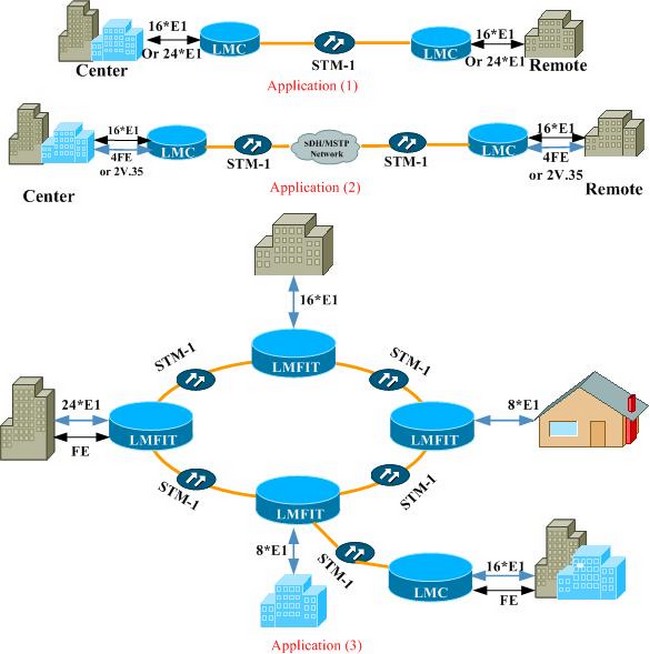

As a key member of VeeCOM "MetroEdge-Express" SDH/MSPP Product family, DHODT-LMC is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for applications in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It can provide 16E1 TDM interfaces and 1 physical slot that can be inserted with 4E1/8E1/2Ethernet/4Etherent/2V.35 service card in only 1U standard 19” box. DHODT-LMC is best suitable for point-to-point network or standard SDH TM node. Working together with other “MetroEdge-Express” family member such as DHODT-LMFIT, it can support various network topologies such as point-to-point, chain, ring, hub, and mesh networks.

*1U box SDH/MSPP with 1 optical interface and 16E1 interface and one flexible card
*One flexible physical slot can be inserted with various service cards
*Flexible cards support 4E1/8E1/2Ethernet/4Etherent/2V.35 cards
*Optical interface supports ALS (Auto Laser Shutdown) function
*Inter-working with popular SDH/MSPP products of various vendors
*SDH/MSPP core, PDH price
*Easy commissioning and maintenance
*High integration, compact design
*High reliability, low CAPEX and OPEX


SDH Interface
Max:1~2 STM-1 optical interfaces
(1+1 supported)
Connector:SC/PC
Spec.:S-1.1, L-1.1, L-1.2
Single fiber bi-directional interface can be optionally supported

PDH interface
E1 Spec.:Comply with G.703, 2.048Mbps, HDB3
Max E1:16E1+8E1

Management
Protocol :SNMP
Interface:10Base-T, MDI

Power Supply
-48V DC or 220V (110V) AC or dual power supply +24VDC
Consumption:≤15 w

Environment
Temperature:0℃～50℃
Humidity:≤90 %

Data
Asynchronous RS485 data

Service card (1 physical slot)
F4XE1  4XE1 interface card (75Ω)
F8XE1  8XE1 interface card (75Ω or 120Ω)
FFE201  2XFE interface card
(2FEs over a single virtual concatenation channel) ITU-T G.7041 GFP
FFE404  4XFE interface card
(4FEs over 4 independent  virtual concatenation channel) ITU-T G.7041 GFP
2XV.35  2XV.35 framed interface card (NX64K) DTE or DCE

EOW interface
Standard socket: 4P4C

Physical Dimension
1U: 440 × 44 ×230(mm)
