FE1MUX4

FE1MUX4 is E1 to 4xV.35/V.24/RS232 Converter. Other series interface RS449/RS530/X.21 also can be optional. E1 port can support BNC/75ohm and RJ45/120ohm optional.

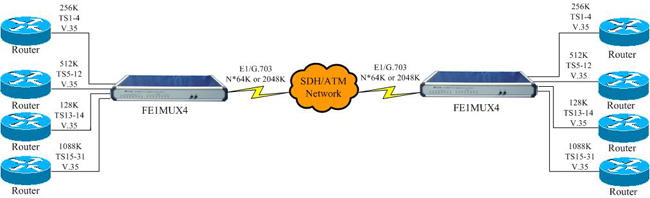

This device provides an economical digital access solution for E1 and fractional E1 network services.With a adapter cable,the device can link to other DTE device,such as router.User data is placed into the E1 frame,using only the required number of timeslots,timeslot assignment is accomplished according to the data port speed and manual setting of DIP switches.The 4 interfaces share the 2Mbps bandwidth,the total bandwidth of the 4 interfaces must be not more than 1984Kbps.FE1MUX4 is widely used in communication network,both in WAN and LAN connection field.

*Comply with  ITU V.35,G.703,G.704,G.706,G.823
*Framed(N*64Kbps) and unframed(2.048Mbps) optional
*Frame mode support PCM30/PCM31
*Support CRC4
*Support  E1 recovery clock
*Provide analog and digital loopback test
*For E1 interface,75ohm(unbalanced) and 120ohm(balanced) optional
*For data  interface, V.35 and V.24/RS232 optional
*Comprehensive LED indicators on front panel,convenient for the diagnosis of equipment working state
*-48V DC & 220V AC power supply optional

E1 & FE1  interface
Comply with ITU G.703,G.704,G.706,G.823
Rate:2.048Mbps;N*64kbps(N=1~31)
Code type:HDB3
Impedance:75ohm unbalanced & 120ohm balanced optional
Physical connector:BNC coaxical  for unbalanced
                                   RJ45 twisted pair for balanced

V.35,V.24/RS232 interface
Comply with V.35,V.24/RS232 standard
Rate:2048Kbps;N×64Kbps(N=1~31)
Transmission mode:Synchronization
Data interface:V.35 or V.24/RS232
Physical connector:DB25 female jack,V.35 external adapter
Work mode:DCE

Power supply
AC power:220V±10%,50Hz
DC power:-48V(optional)
Power:5W

Environment
Temperature:0~40℃
Humidity:0~95% RH
