As a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, V-IPMUX-1 adopts the innovative TDM over IP technology, it transports the legacy E1 data through the existing Ethernet or IP network.
 V-IPMUX-1 is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of one or twot E1 and two local Ethernet ports over Ethernet or IP network. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100BaseT auto-sensed Ethernet port.

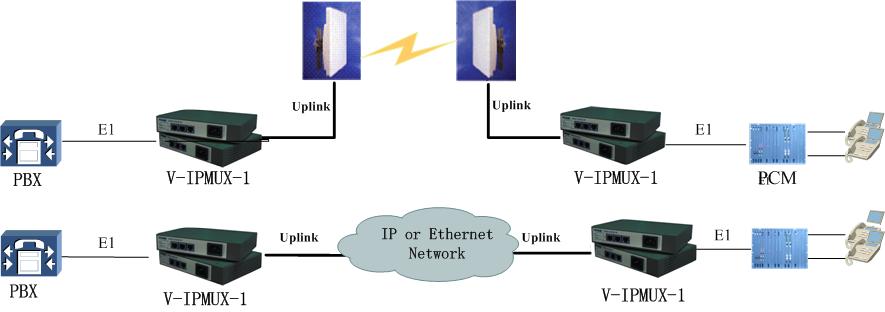

The state-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.  Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use V-IPMUX-1 to provide legacy TDM services over wired or wireless packet network.

*User-friendly Web server supported for easy setup and maintenance
*Support SNMP V1 and V2 network management
*Point to point and point to multipoint supported
*One E1 Port supported
*Uplink ports 1+1 backup supported
*Stable E1 clock recovery, low jitter and wander
*Low processing delay for E1 channels, high bandwidth usage efficiency
*Local and remote E1 LOS and AIS and packet loss indication for trouble-shooting and maintenance
*Resist to packet loss, with PCM frame synchronization protection
*User definable encapsulation packet size for different application
*Support Ethernet encapsulation and UDP/IP protocol encapsulation
*Support VLAN settings for E1 service and in band VLAN management
*Enough jitter buffer to resist packet delay variation (PDV)
*Local Ethernet port throughput limiting, assuring E1 QoS

Capacity
It supports 1~2 E1 ports, two 10/100Base-Tx uplink Ethernet ports.

E1 interface
Comply with ITU-T G.703 recommendation
E1 port impedance E1-120Ω for twisted pair cables or 75Ω for coax (The RJ45 E1-120Ω are default for ports)
End-to-end delay (minimum delay setting)  £ 10ms
Output frequency offset (adaptive timing, stabilized) £ 5 ppm
Output jitter (adaptive timing)  £ 0.1UI

10/100Base-Tx port
Comply with IEEE 802.3
10M/100M Adaptive
Half/Full Duplex Adaptive
Support 802.1Q MAC
Uplink ports 1+1 backup supported
Two user data ports supported. And Web manager supported through anyone of two user data ports.

Power
AC:100V~260V/50Hz (fuse: 1A)
DC:-38V ~ -62V (optional)
Power Consumption:≤4W

Operating condition
Temperature:  (0～45) ℃
Humidity:       ≤90％ (non-condensing)

Dimensions
Width × Height × Depth： 185×35×138 mm

Weight
≤ 1 kg
