GVE1-2 is E1 to 2xV.35/V.24/RS232 Converter. Other series interface RS449/RS530/X.21 also can be optional. E1 port can support BNC/75ohm and RJ45/120ohm optional.

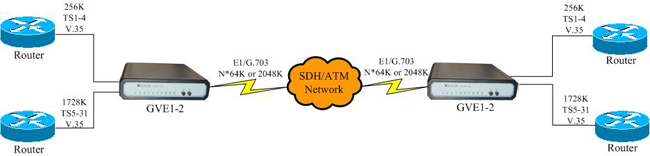

With the up-to-date ASIC circuit design,GVE1-2 can convert 2*V.35 or 2* V.24/RS232 to E1.This device provides an economical digital access solution for E1 and Fractional E1 network services.With a adapter cable,the device can link to other DTE device,such as router.User data is placed into the E1 frame,using only the required number of timeslots,timeslot assignment is accomplished according to the data port speed and manual setting of DIP switches.The 2*V.35 or 2*V.24/RS232 share the 2Mbps bandwidth,the total bandwidth of the 2 interfaces must be not more than 1984Kbps.GVE1-2 is widely used in communication network,both in WAN and LAN connection field.
|
