MUX4E1-Tplus is 4xE1 to 2xEthernet Converter. The vaild brandwidth of each E1 is 1984Kbps,the highest rate is 7.936Mbps(4 Lines E1). E1 port can support BNC/75ohm and RJ45/120ohm optional.

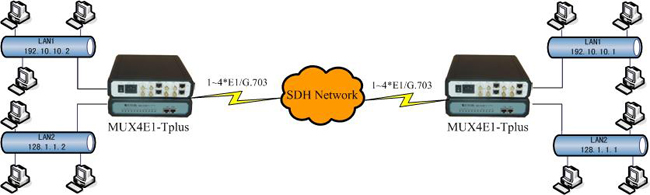

MUX4E1-Tplus is a kind of high-performance, self-educated long-range Ethernet bridge.With the up-to-date ASIC circuit design,MUX4E1-Tplus can carry out real-time analysis on up to 4 E1 transmission chains,analyze the line quality of E1 chain,and cut off the transmission of the chain automatically on the occasion of open circuit,error code,delay or alarm so as to avoid adverse effects on Ethernet transmission such as open circuit and frame losses so on.With low cost, it is fit for bridge connection or LAN extender or subsection.It can automatilly learn the MAC address in the connected LAN continuously,and transmit the target address of data frame in another LAN.The two Ethernet interface dynamically distribute the brandwith,and work in differnet network.It allows transmitting and receiving VLAN data packets.It does not perform any negotiation over the link, which is specially suitable for satellites and other wireless broadcast applications.
|
