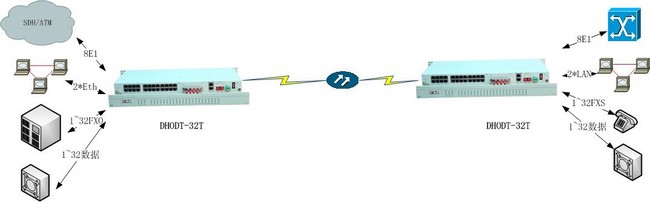

Optical Interface
Bit rate:155.52Mbps±20ppm
Code type:NRZ+ scrambling code
Optical Transmitting power:> -5dB ~ -17dB
E1(2Mb/s) Interface
Standard E1 interface, conforms to the recommendation of ITU-T G.703, G.704, G.712:
Bit rate:2048Kbps±50ppm
E1 Line Code :HDB3
Interface impedance:75Ω unbalanced or 120Ω balanced
Subscriber and loop interface(FXO, FXS, hot-line)
Impedance:600Ω
Insertion loss:-3±0.75dB
Frequency characteristic:300~3400Hz(-0.6~+3dB)
Weighted noise:≤63.7dBmop
Crosstalk attenuation:≥65dB
Loop impedance:≤1800Ω
2 wire/4 wire audio interface (2 wire/ 4 wire E&M interface)
Impedance: 200Ω+680Ω||0.1μF
4 wire AD gain: 14 dB(adjustable)
4 wire DA gain: -2 dB(adjustable)
4 wire AD frequency characteristic: -0.2 - +0.2dB
2 wire AD frequency characteristic: -0.2 - +0.2dB
2 wire DA frequency characteristic: -0.2 - +0.2dB
Return loss:40dB
Balance degree:70dB
Common Mode Rejection Ratio(CMRR):70dB
Power rejection ratio:30dB
Spare channel noise:≥65dB
Loop impedance:600Ω
RS232(asynchronous ) Interface
Interface type:V.24 asynchronous
Rate:0-19.2Kbps
RS232(synchronous) Interface
Interface type:V.24 asynchronous (simplex, duplex is optional)
Rate:4800bps, 9600bps,19200bps, optional
Clock mode:DCE, DTE, optional
V.35 Interface
Interface type:V.35 asynchronous
Rate:Nx64Kb/s(N =1-30)
Clock mode:DCE
10/100Base_T Interface
Interface type:10/100Base-T
Interface rate:10M/100Mbps (self-adaptive)
Transmission rate:100Mbps
19” EIA chassis: 210mm(depth)*480(width)*44mm(height)
|
