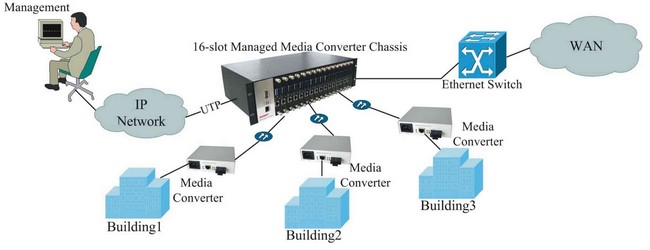

Veecom Series Media Converter is a 10/100/1000Base-TX Ethernet media converter with the function of auto negotiation and auto MDI/MDIX cable selection.This device translates transmission signals from a twisted-pair 10Base-T、100Base-TX or 1000Base-T cable to 1000Base-FX fiber optic cable. With intelligent SNMP-based network management,user can monitor and configure the Copper Port and Optical port of center chassis and remote standalone easily,and helps network operators quickly isolate problems without visiting multiple wiring closets,avoiding expensive downtime.Besides,user can control the bandwidth rate limiting

*Support 1000Base-T, 1000Base-LX&1000Base-SX
*Convert 1000bps Ethernet copper port to optical port
*Fiber type: Multimode and single mode optional, double strand and single strand optional
*Up to 80Km distance on single-mode fiber
*Allow transmitting and receiving VLAN data packet
*Two types optional: stand-alone unit and Modular Chassis
*Internal power supply, including AC220V or DC-48V

*Support Console,WEB and SNMP management
*View & configure the working status of local chassis and remote standalone device,including connection status,speed,half/full duplex mode,port ststus
*Support rate limit with step of 8Mbps in 1000Mbps speeed,0.8Mbps in 100Mbps speed,and
0.08Mbps in 10Mbps speed
*Support remote loop back function
*Support online firmware upgraded
