MDSL-T is a 2-wire high-performance self-learing long-range Ethernet bridge. It uses multi-rates digital user line technique to achieve the bandwidth up to 2320 Kbps.

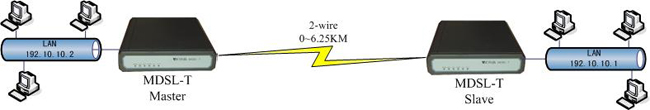

With the up-to-date ASIC circuit design, MDSL-T is a 2-wire high-performance self-learing long-range Ethernet bridge. It uses MSDSL (multi-rates digital user line) technique to achieve the bandwidth up to 2320 Kbps.It is suitable for low-cost bridge connection application,and be set and connected conveniently.MDSL-T is widely used as extender to connect 2 LANs.

﹡Use MSDSL technique
﹡Comply with IEEE 802.3/IEEE 802.3u/IEEE 802.1Q(VLAN)
﹡Self-learning and updating MAC address
﹡Store up to 1024 MAC addresses
﹡Transmission distance:3.29km (24AWG),2.51km (26AWG)
﹡Support 8 kinds of rate: from 256Kbps to 2320Kbps
﹡Low operating cost,simple manipulation,convenient use
﹡Comprehensive LED indicators on front pannel convenient for the diagnosis of equipment working state
﹡Fill/Half duplex mode compatible
﹡-48V DC & 220V AC power supply optional

Line  interface
Transmission rate:256Kbps,384Kbps,768Kbps,1024Kbps,1280Kbps,
1536Kbps,2048Kbps,2320Kbps
Transmission mode:synchronous full duplex;HDLC
Line impedance:135ohm

Ethernet interface
Comply with IEEE 802.3/IEEE 802.3u/IEEE 802.1Q(VLAN)
Rate:10/100Mbps,Half/Full auto-negotiation
MDI/MDI-X optional
Physical connector:10/100Base-T(UTP);RJ45(shield)

Power supply
AC power:220V±10%,50Hz
DC power:-48V(optional)
Power:5W

Environment
Temperature:0～40℃
 Humidity:0～95% RH
