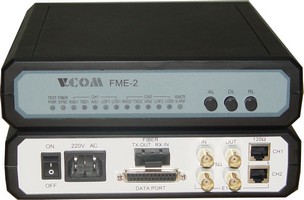

FME-2 series fiber optical modem can be modular with three configurations. 2xE1; 2xV.35/V.24/RS232; E1 and V.35/V.24/RS232. Single fiber for WDM can be optional.
With the up-to-date ASIC circuit design,FME-2 Series fiber modem can modulate E1 or V.35,V.24/RS232 signal to single-mode or multi-mode fiber which provides 2 separate 2M data channels(2*E1,2*V.35 or V.24/RS232,1*E1+1*V.35 or V.24/RS232 ).It can achieve fiber to V.35 or V.24/RS232 directly instead of using the PDH and converter,to reduce the cost.It supports remote management function,the slave can automatically follow the master(the rate of the slave not need to be set);FME-2 Series can be across used as requirement and be widely used in extending user interface in ATM or DDN.

*Realize E1 or V.35,V.24/RS232 signal transmitting over fiber;transmitting distance can reach 100Km without repeater
*Single mode and multi mode optional
*Single fiber and dual fiber optional,SC/FC/ST optional
*E1 interface:Framed & Unframed optional,75 & 120ohm seletable
*Frame mode support PCM30/PCM31
*Support CRC4
*For data interface,V.35 and V.24/RS232 optional
*V.35 interface:support N×64Kbps
*Provide analog and digital loopback and remote digital  loopback test
*Provide bit-error test and time-slot follow by remote equipment,which brings a lot of  advantage in setting and debug
*Supports internal clock,external clock and slave clock
*Comprehensive LED indicators on front panel,convenient for the diagnosis of equipment working state
*-48V DC & 220V AC power supply optional

Fiber interface
Rate:150Mbps
Wavelength:850nm/1310nm/1550nm
Connector:FC/SC/ST
Distance:0-100Km
V.35,V.24/RS232 interface
Comply with V.35,V.24/RS232 standard
Rate:2.048Mbps;N*64Kbps(N=1~31)
Physical connector:DB25 female jack,V.35 via external adapter
Work mode:DCE

E1 interface
Comply with ITU G.703,G.704,G.706,G.823
Rate:2.048Mbps;N*64Kbps(N=1~31)
Code type:HDB3
Impedance:75ohm unbalanced & 120ohm balanced optional
Physical connector:BNC coaxical for  unbalanced
                                   RJ45 twisted pair for balanced

Power supply
AC power:220V±10%,50Hz
DC power:-48V(optional)
Power:5W

Environment
Temperature:0～40℃
Humidity:0～95% RH
